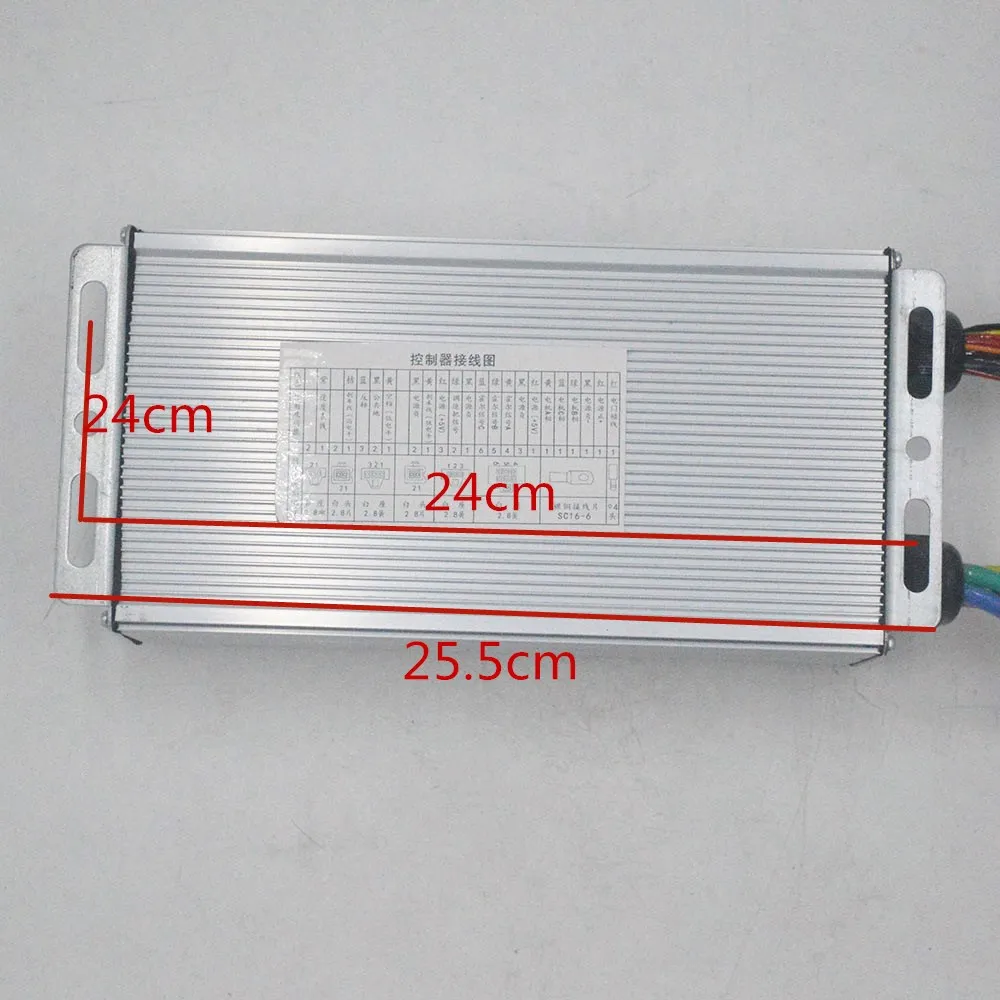

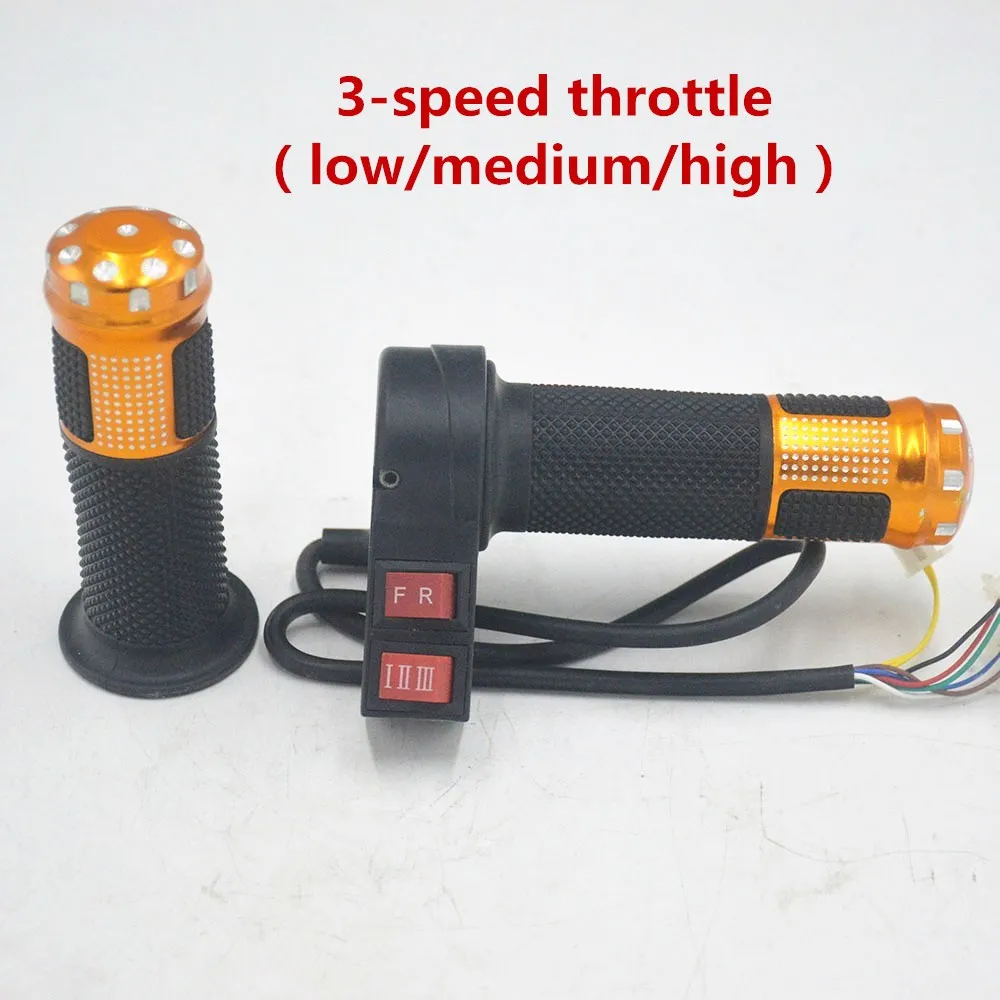

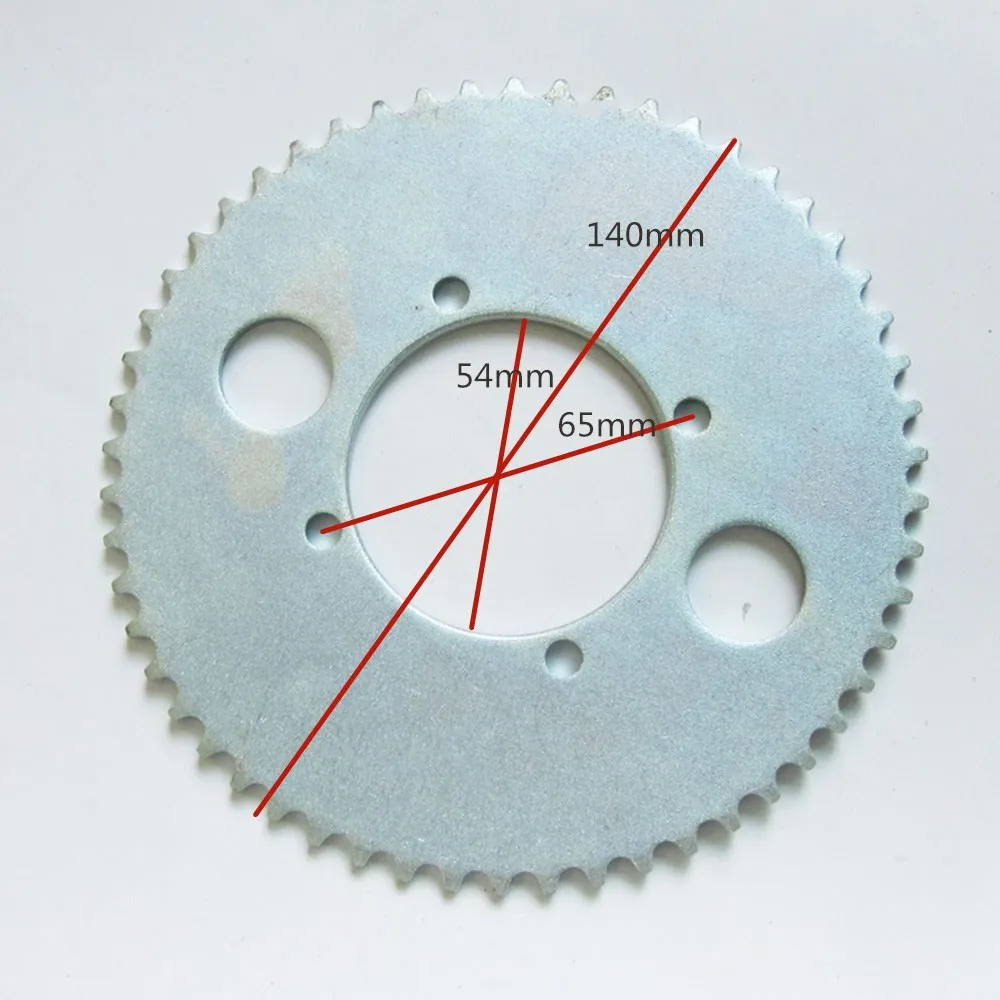

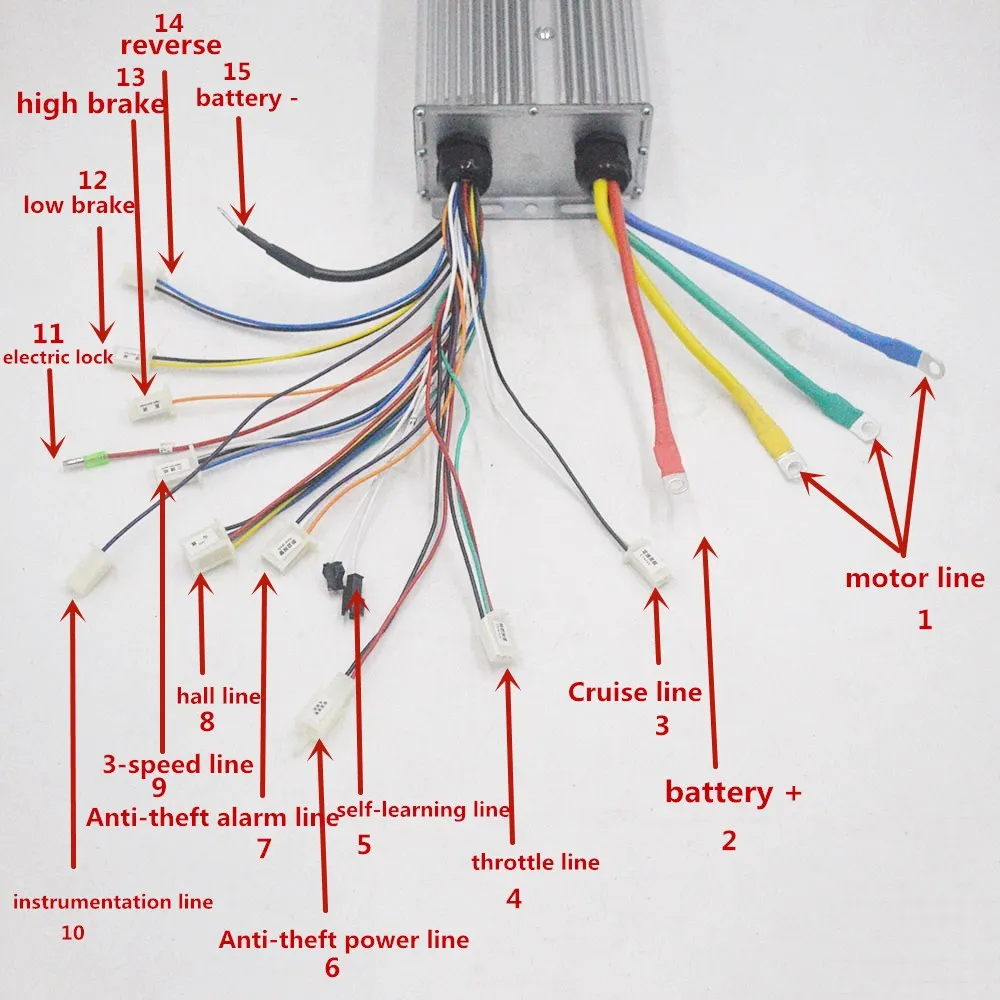

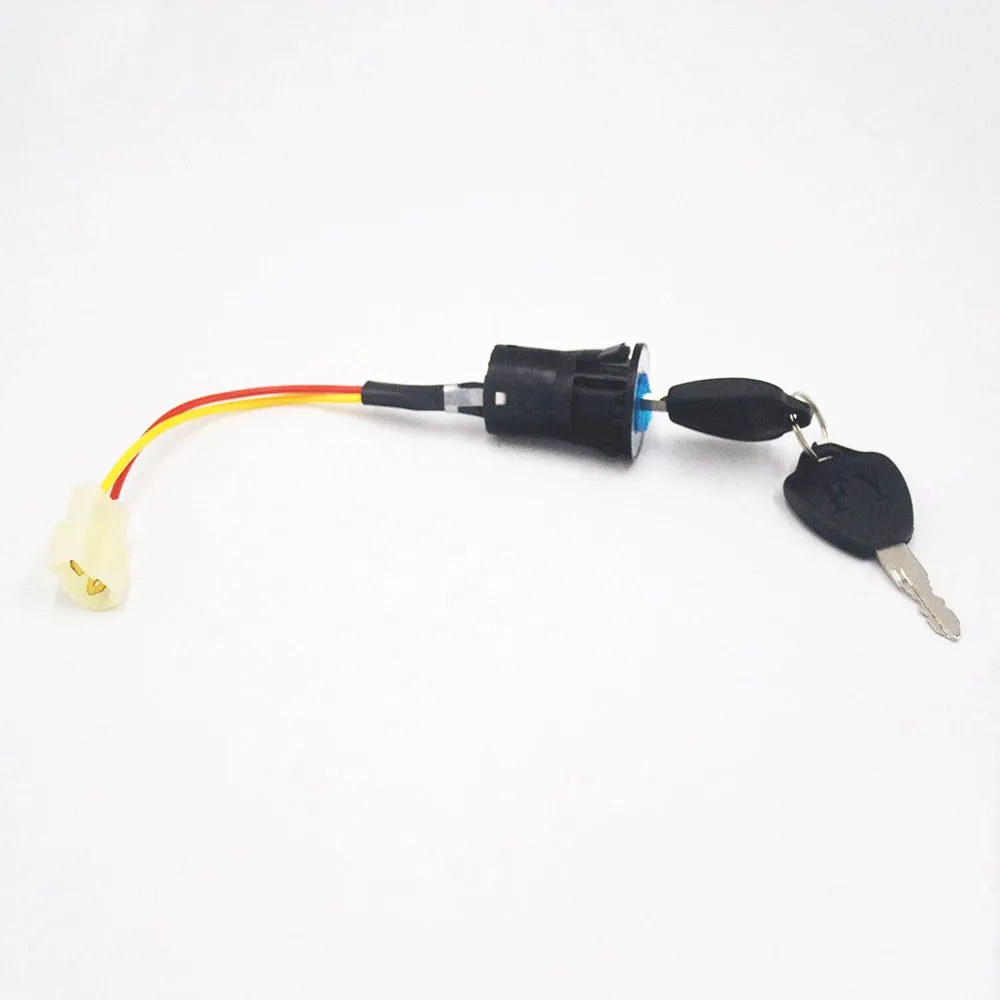

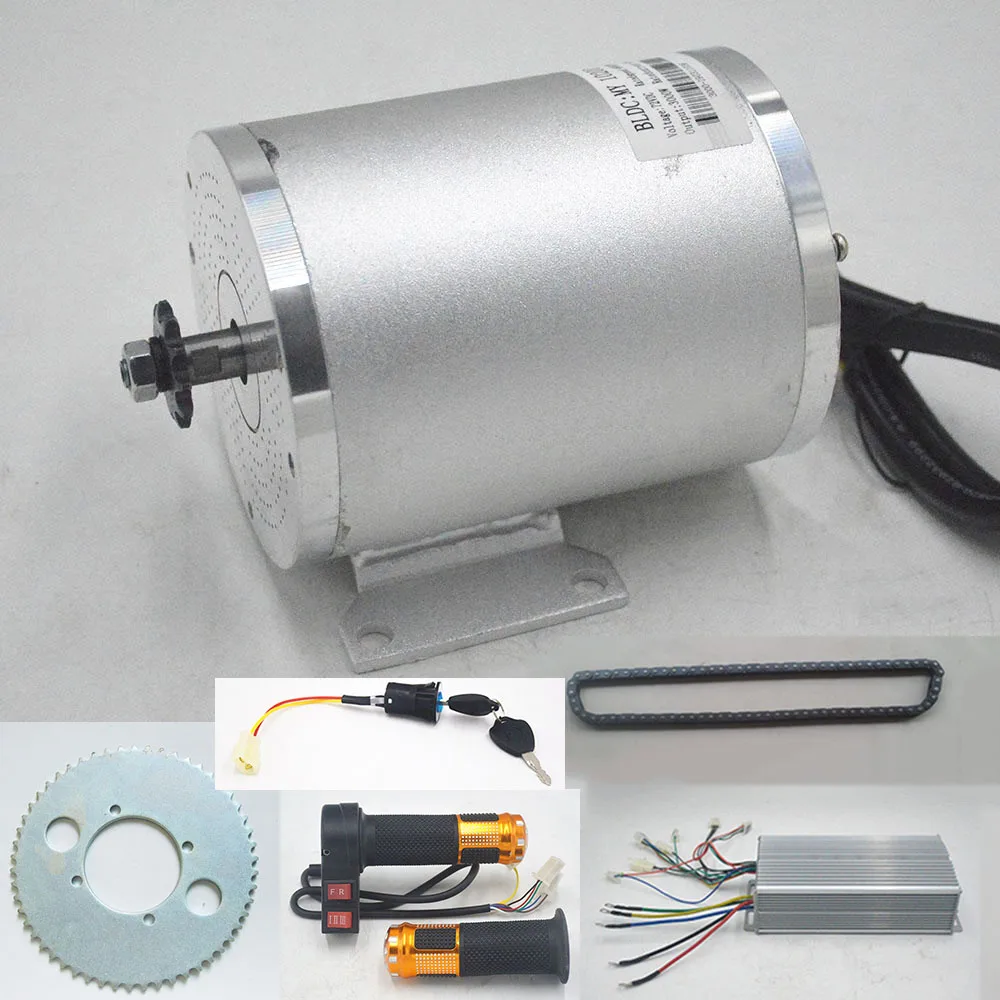

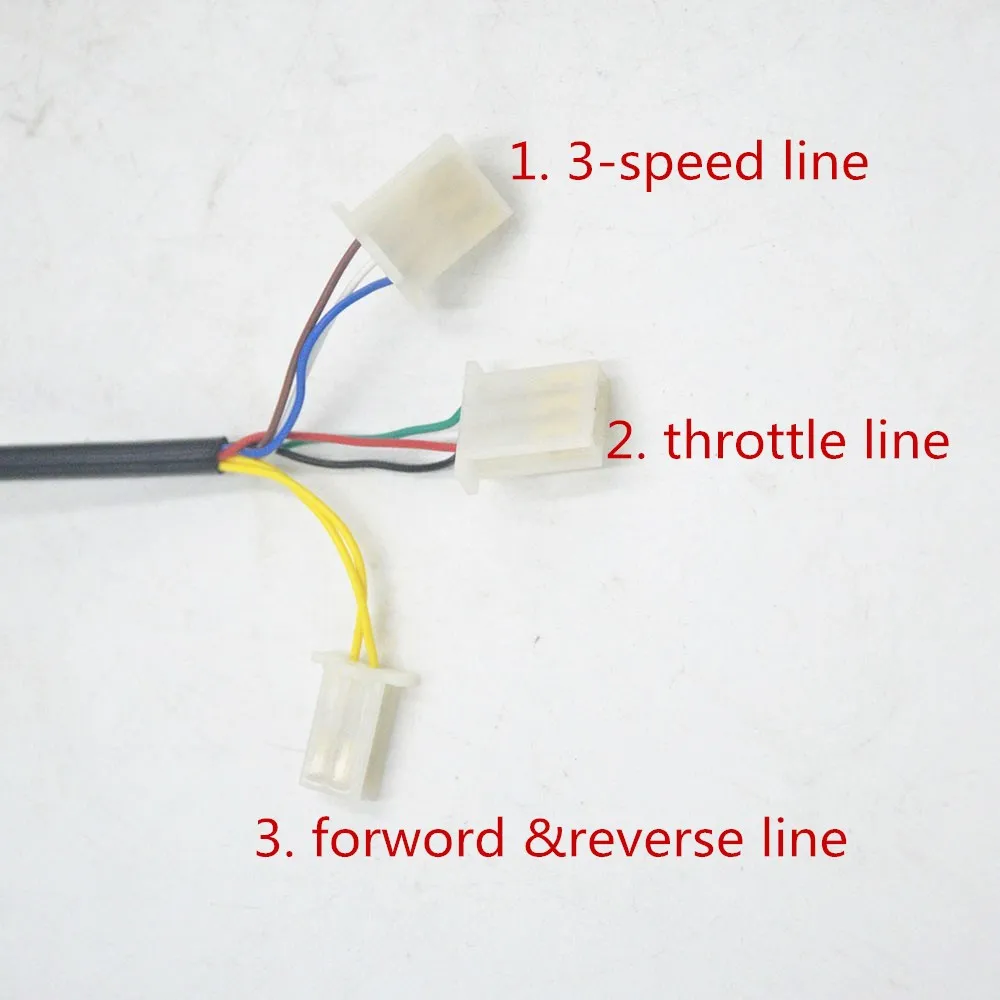

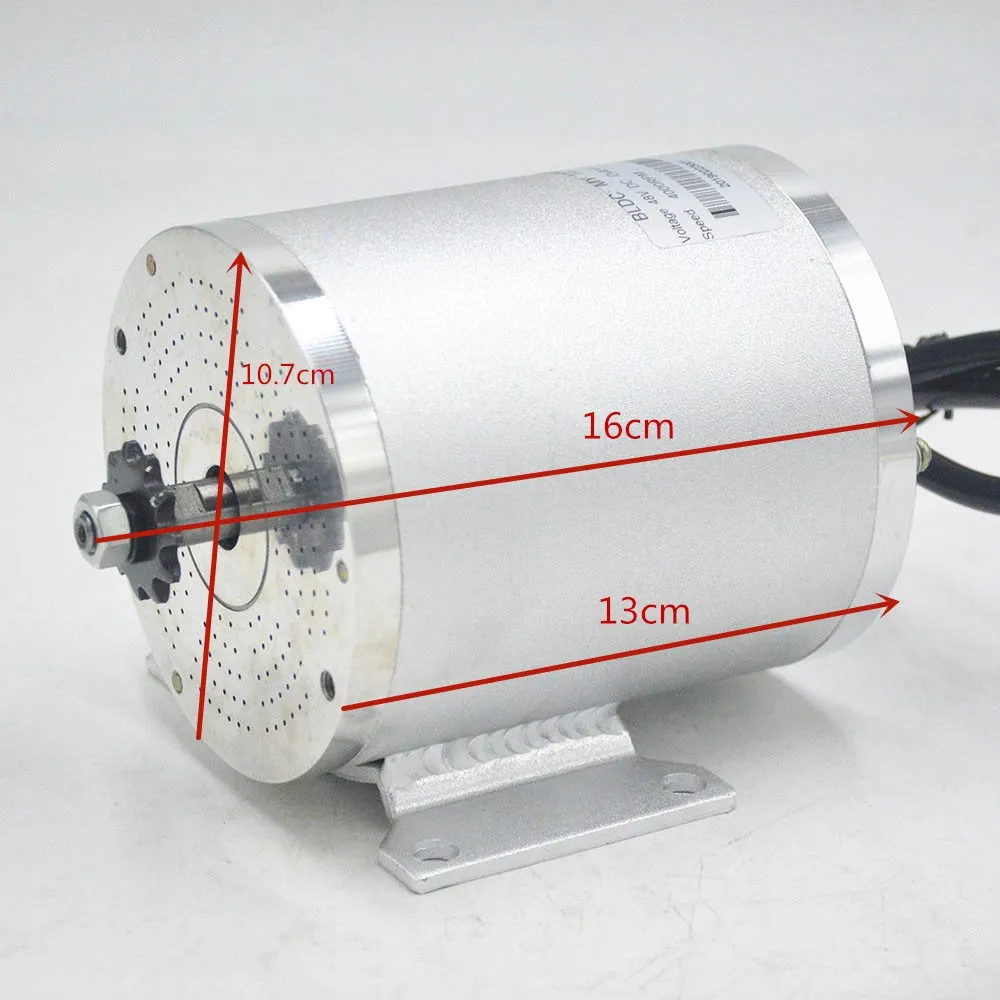

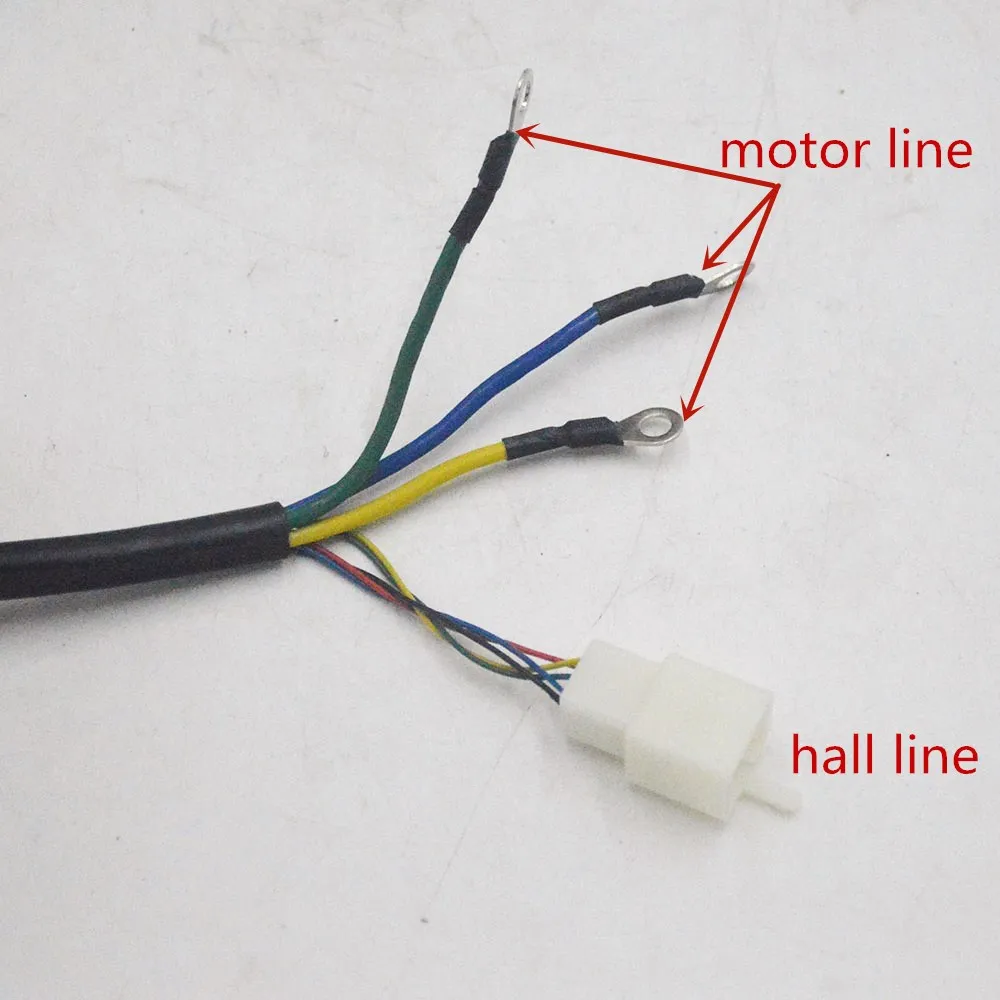

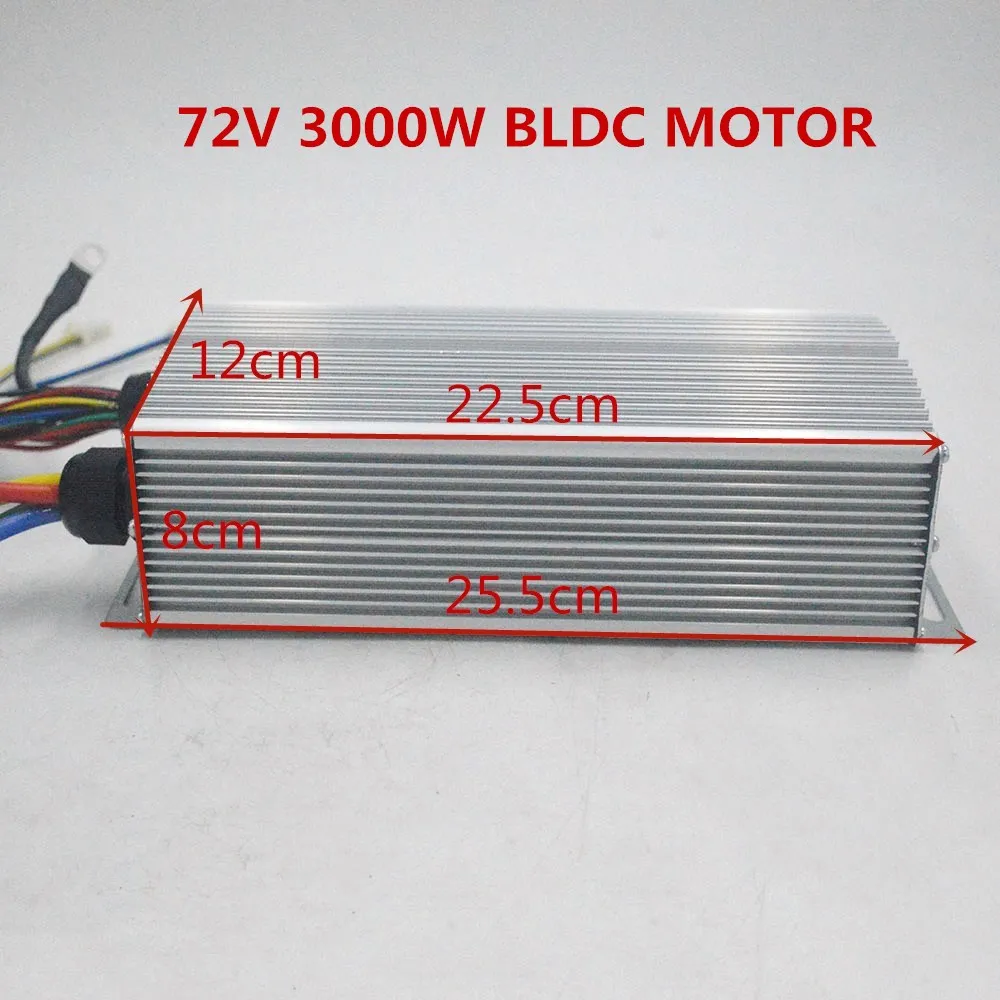

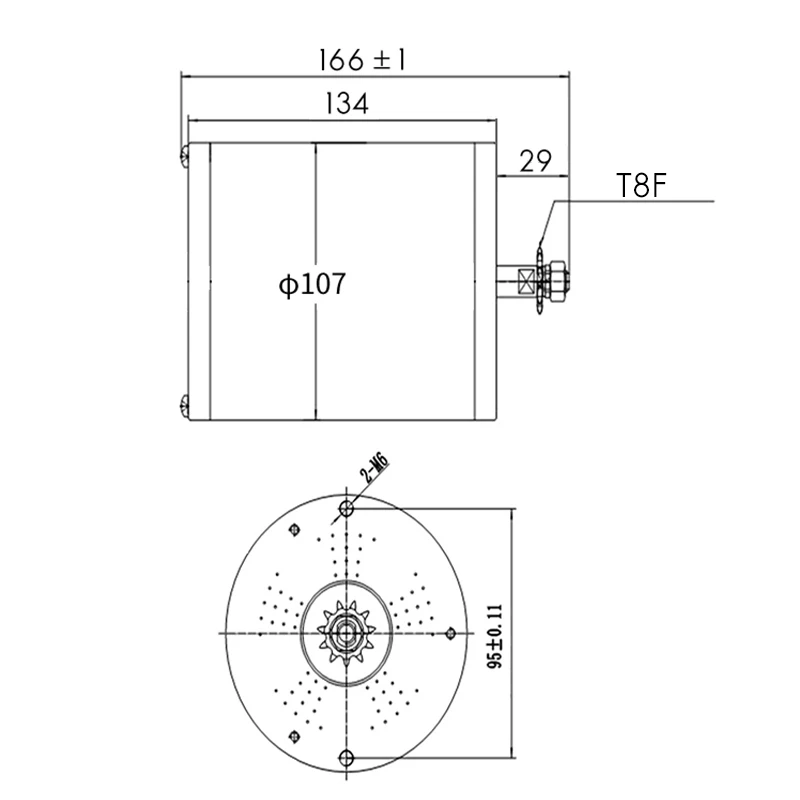

72V 3000W Brushless Motor Kit With 24 Mosfet 50A Controller For Electric Scooter E bike E-Car Engine Motorcycle PartNote:This price does not include tariffs.When you have been placing a order, please tell us how much you need to declare?If you don't leave a message,We will write a fit value.Packing List1. 1pcs 72v3000w brushless motor2.1pcs 42-72v3000w 50A 24MOS Brushless Controller3.1pcs Power Lock Ignition Key4.1pcd T8F Chain.5.1pcs T8F Chainwhell(teeth plate)6.1Pair Handlebar Throtte(with 3-speed,forwardand reverse function)Products DetailsAbout Motor:1.Model:KUNRAY MOTOR MY10202.Motor Type:High-Speed BLDC brushlessMotor4.Out put /W:3000W5.Rated Speed:4900r/min 5800RPM(MAX)6.Weight:4.8KGS7.Diameter:95mm8.Rated Torque/N.m:5.4N.m9.Applicable:Electric Scooter,Ebike,Folding Bike,Small E-Moto,machine,MIni Electric Car ,DIY11.Installation: Center,MID DRIVE12.Application Chain:T8F Sprockt /ChainAbout Controller:1.Power:3000w2.Voltage:42-72V DC3.Current:50A4.Mosfet:24WF5.Under Voltage turn the 1.1-3.7V6.Brake Low LevelNote: We can not provideInstallation guide, we can provide motor and controller wire diagram ONLY!( below have wire diagram ,for reference only)THIS MODEL MOTOR HAVE WITH FOOT MOEL,also HAVE OTHER POWE LIKE:36V350W 500W 1000W / 48V 1000W 2000W / 60V 2000W 2500W / 72V 2000W 3000W IF NEED CAN CONTACT WITH US!!!HAVE IN STOCK !!!Wire Diagram:1.Connect the motor phase to ControllerPhase (Color to color)2. Connect the Throttle Wire:Red Wire: +Black Wire:-Green Wire: Singal3.Connect the Hall Wire.Controller Hall To Motor Hall Wire .(Color to color)The Small White Wire is Self-study Wire. (Connect eachother)4.Conncet the Power lock Wire.(withoutignition key ,can connect the power lock wire to itself)open the power lock.5.open the battery ,turn on the throttle ,motor will be working.Note: when motor reverse ,close the self-study wire when motor stop ,connect the self-study wire again , then motor willl bePositive rotation.Let the motor working about 10 seconds ,cut off the self0study wire ,cut off the power lock wire about 10 second too. thenThe controller will automatically save the program.6.Then canuse other function wire.72V 3000W brushless controller function:1. motor line2. battery +3. Cruise line4. throttle line5. self-learning line6. Anti-theft power line7. Anti-theft alarm line8. hall line9. 3-speed line(low/Medium/high)10. instrumentation line11. electric lock line12. low brake13. high brake14. reverse line15. battery -(1.Contact the motor line2. Contact the hall line3.contact the throttle line4.contact the electric lock line5.Contact the battery line(red:+ , black:-)6.Docking the two self-learning lines, twist throttle, the wheel will forward or reverse.(1.if wheel forward ,Separate the self-learning line.2.if wheel reverse, Separate the self-learning line. then Docking the self-learning line again. if wheel forward ,Separate the self-learning line.)7.other functions can be connected as needed.)3-speed throttle:
