48V 2000W electric Motor With Controller throttle key lock kit For Electric Scooter E bike E-Car Engine Motorcycle Part

Design Brushless

Wattage > 400w

Brand Name MEIANDIAN

Voltage 48V

Motor Type Brushless DC High-speed Motor

Rated power 2000W

Motor Current 42A

Controller Voltage 48V

Controller Current 45A 24Mosfet

Phage Degree 60/120

Motor Speed Rated 4500rpm/min,max 5000rpm/min

Torque 5.4N.m

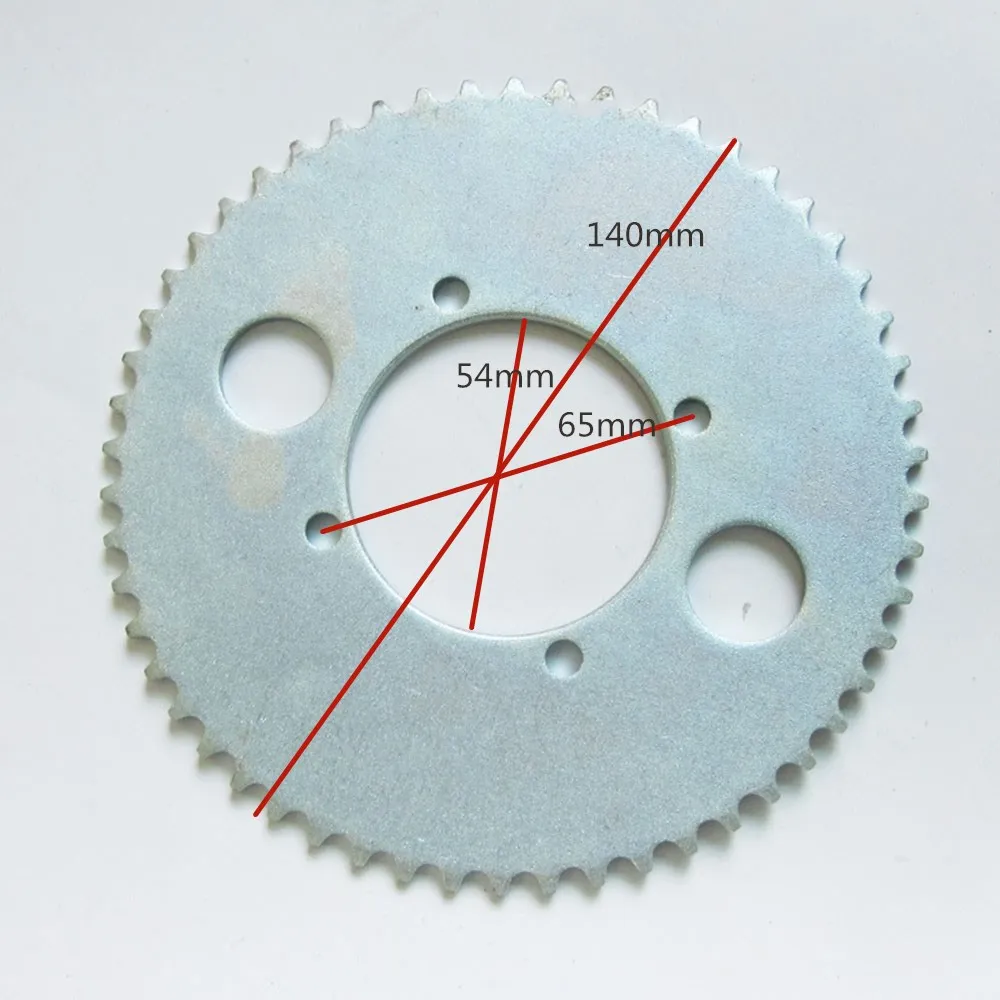

Chainwheel T8F Teeth plate

Chain T8F Chain

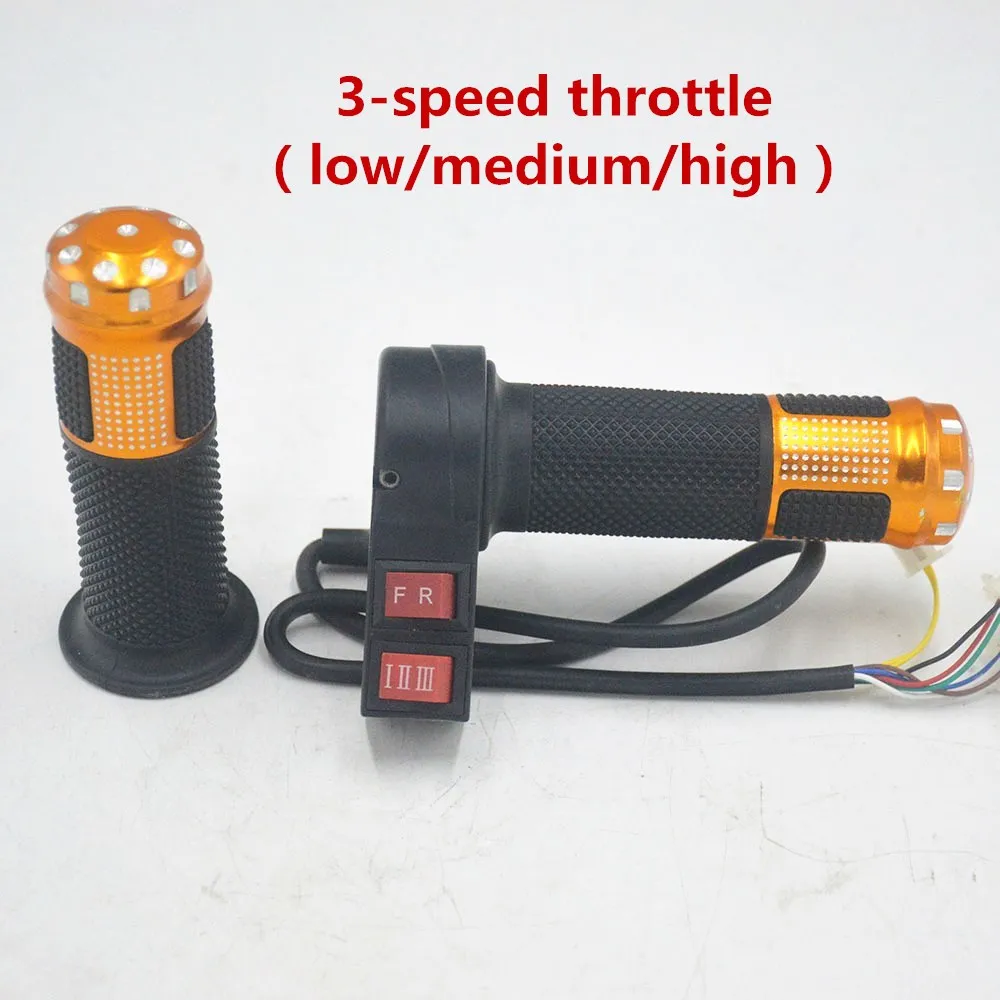

Handlebar Throttle with 3speed and reverse&forward functions

Motor Style motor with foot,motor without foot

Electric Scooter Conversion Engine Kit E-BIKE Motorcycle Motor Kit

E-MOTO EBIKE Dirty Bicycle Accessories DIY Motor Kit

USE electric scooter,ebike,E-car,electric tricycle

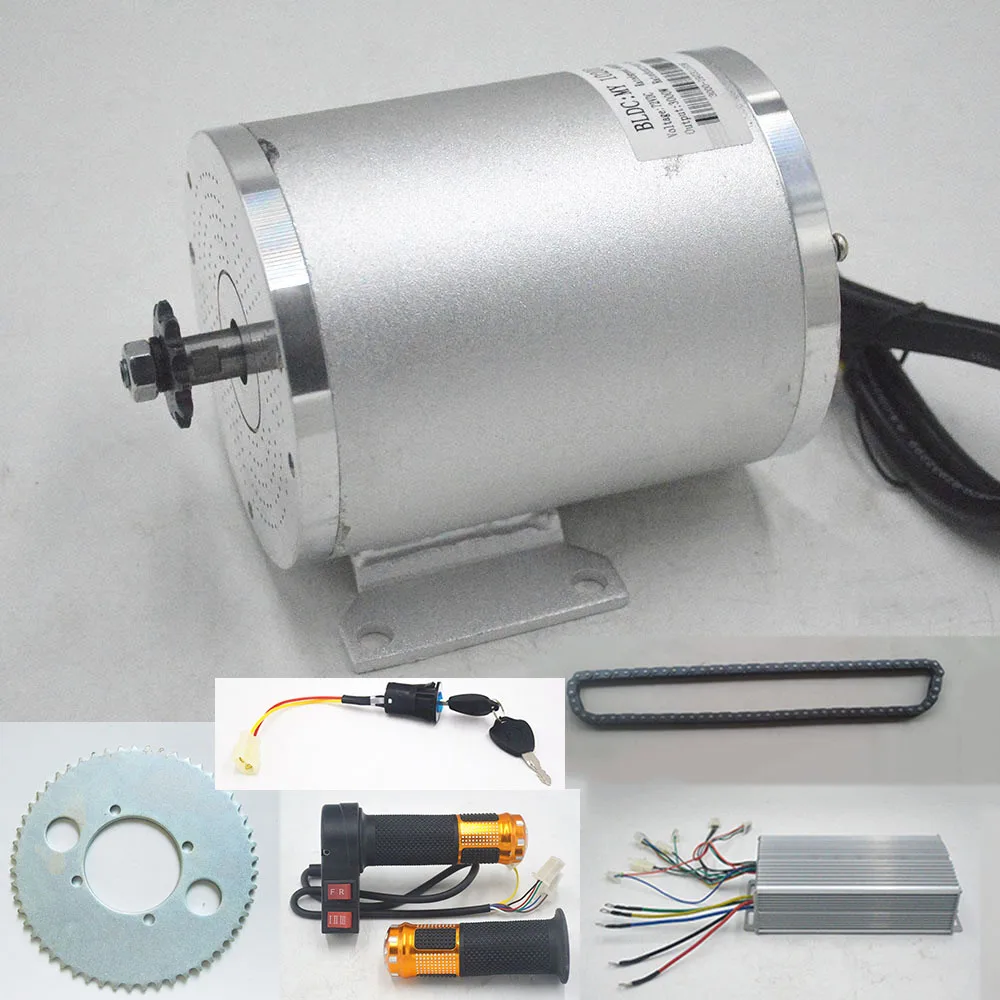

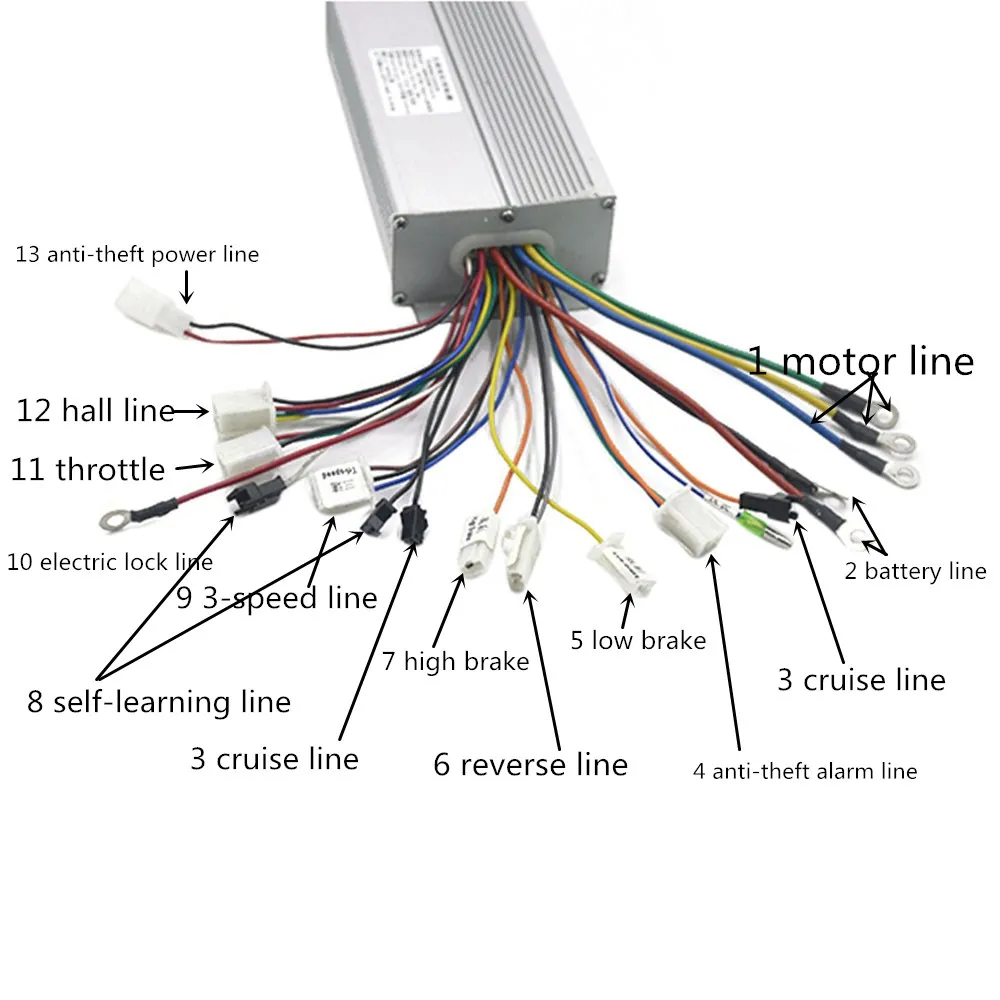

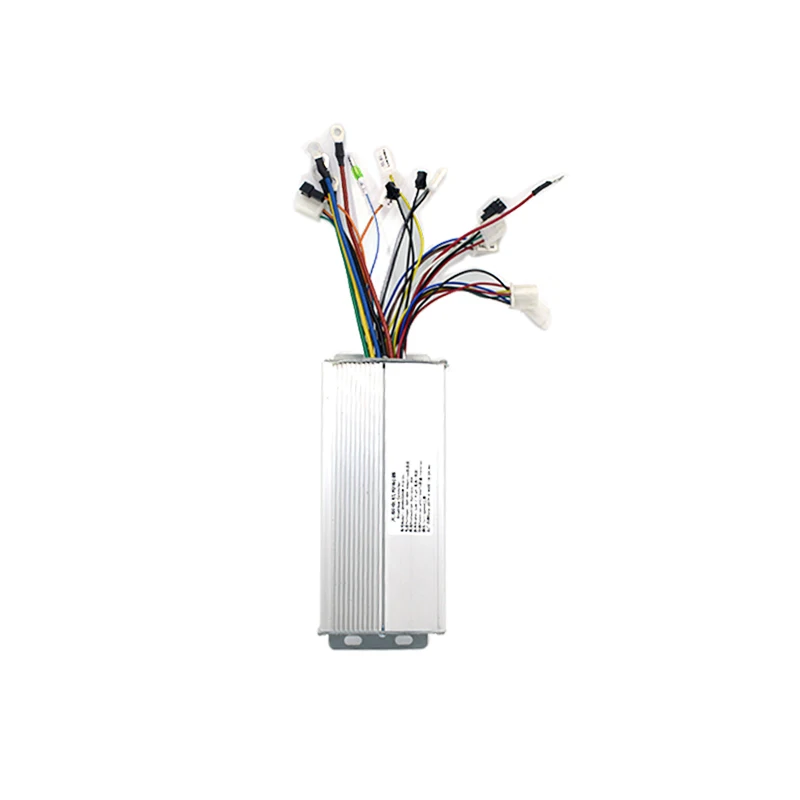

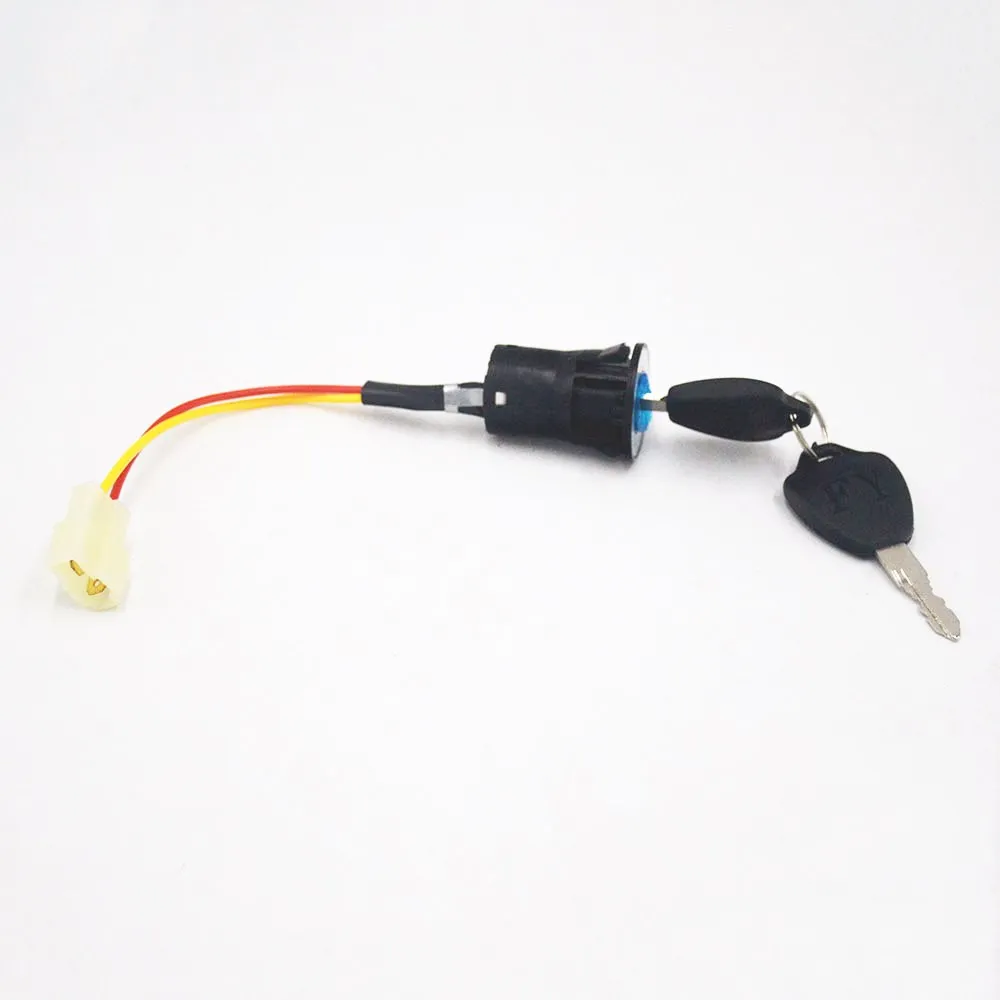

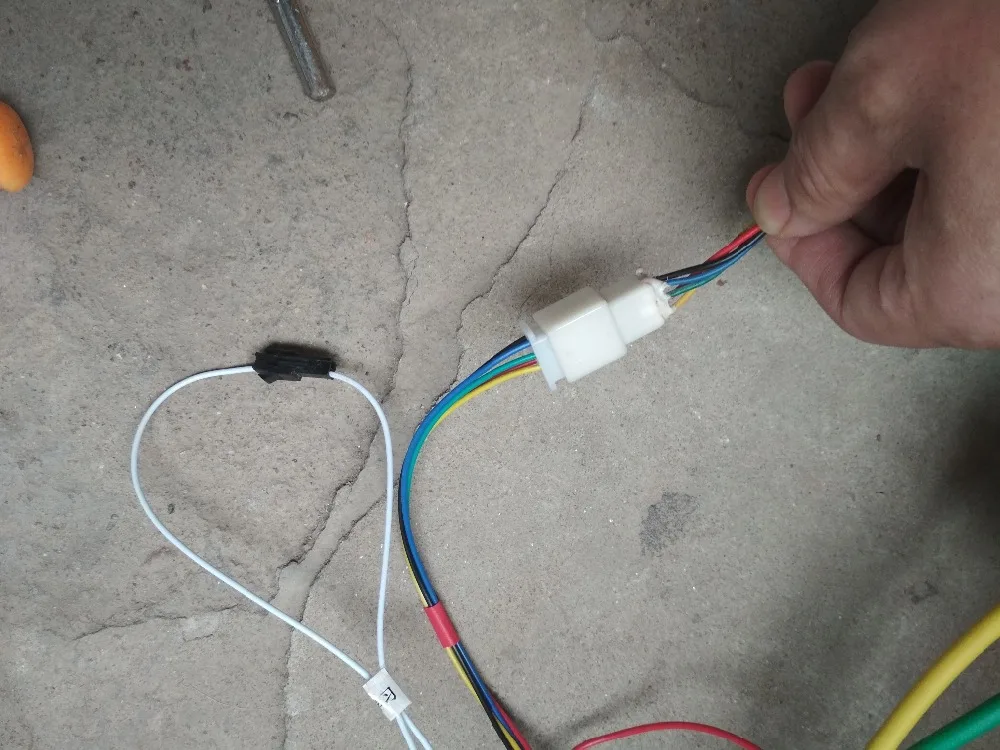

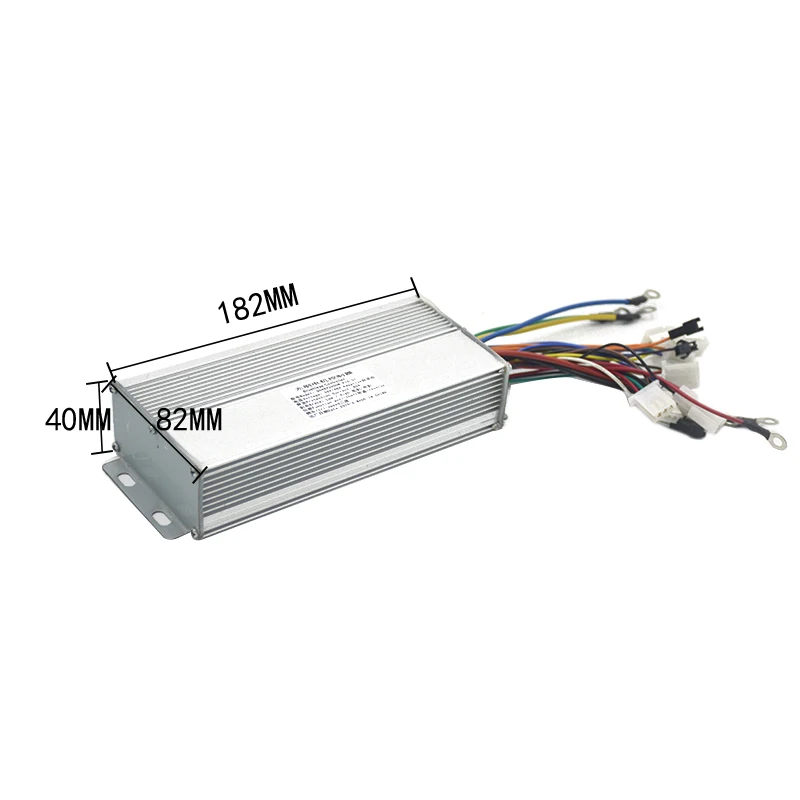

48V 2000W Brushless Motor Kit With 24 Mosfet 45A Controller For Electric Scooter E bike E-Car Engine Motorcycle PartNote:This price does not include tariffs.When you have been placing a order, please tell us how much you need to declare?If you don't leave a message,We will write a fit value.Packing List1. 1pcs 48v 2000w brushless motor2.1pcs 48v2000w 45A 24MOS Brushless Controller3.1pcs Power Lock Ignition Key4.1pcd T8F Chain.5.1pcs T8F Chainwhell(teeth plate)6.1Pair Handlebar Throtte(with 3-speed,forwardand reverse function)Products DetailsAbout Motor:1.Model:KUNRAY MOTOR MY10202.Motor Type:High-Speed BLDC brushlessMotor4.Out put /W:2000W5.Rated Speed:4500r/min 5000RPM(MAX)6.Weight:4.8KGS7.Diameter:95mm8.Rated Torque/N.m:5.4N.m9.Applicable:Electric Scooter,Ebike,Folding Bike,Small E-Moto,machine,MIni Electric Car ,DIY11.Installation: Center,MID DRIVE12.Application Chain:T8F Sprockt /ChainAbout Controller:1.Power:2000w2.Voltage:48V DC3.Current:45A4.Mosfet:24WF5.Under Voltage turn the 1.1-3.7V6.Brake Low LevelNote: We can not provideInstallation guide, we can provide motor and controller wire diagram ONLY!( below have wire diagram ,for reference only)Wire Diagram:1.Connect the motor phase to ControllerPhase (Color to color)2. Connect the Throttle Wire:Red Wire: +Black Wire:-Green Wire: Singal3.Connect the Hall Wire.Controller Hall To Motor Hall Wire .(Color to color)The Small White Wire is Self-study Wire. (Connect eachother)4.Conncet the Power lock Wire.(withoutignition key ,can connect the power lock wire to itself)open the power lock.5.open the battery ,turn on the throttle ,motor will be working.Note: when motor reverse ,close the self-study wire when motor stop ,connect the self-study wire again , then motor willl bePositive rotation.Let the motor working about 10 seconds ,cut off the self0study wire ,cut off the power lock wire about 10 second too. thenThe controller will automatically save the program.6.Then canuse other function wire.1 motor line2 battery line3 cruise line4 anti-theft alarm line5 low brake6 reverse line7 high brake8 self-learning line9 3-speed line10 electric lock line11 throttle12 hall line13 anti-theft power line(1.Contact the motor line2.Contact the battery line(red:+ , black:-)3.Contact the throttle line4.Contact controller electric lock line to throttle electric lock line(if throttle without electric lock line, contact to battery + )5.Contact the hall line6.Docking the two self-learning lines, twist throttle, the wheel will forward or reverse.(1.if wheel forward ,Separate the self-learning line.2.if wheel reverse, Separate the self-learning line. then Docking the self-learning line again. if wheel forward ,Separate the self-learning line.)7.other functions can be connected as needed.3-speed throttle:
