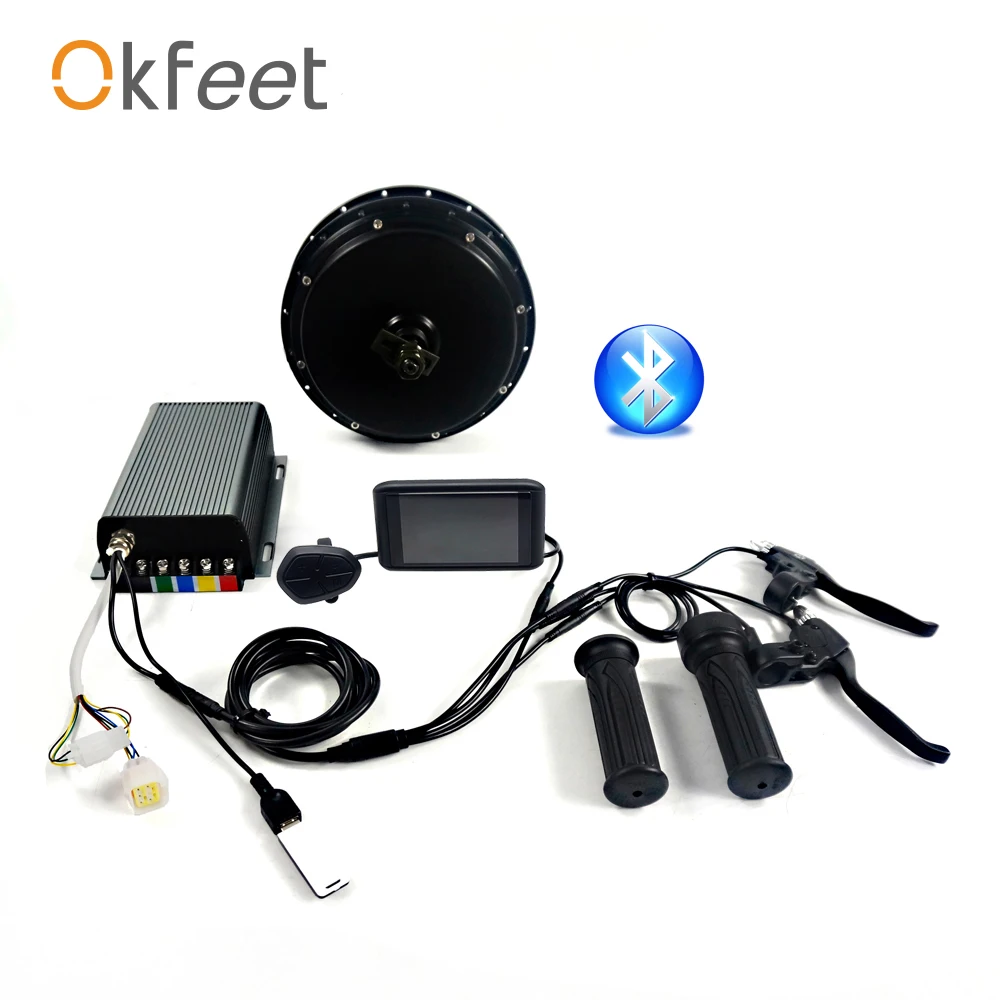

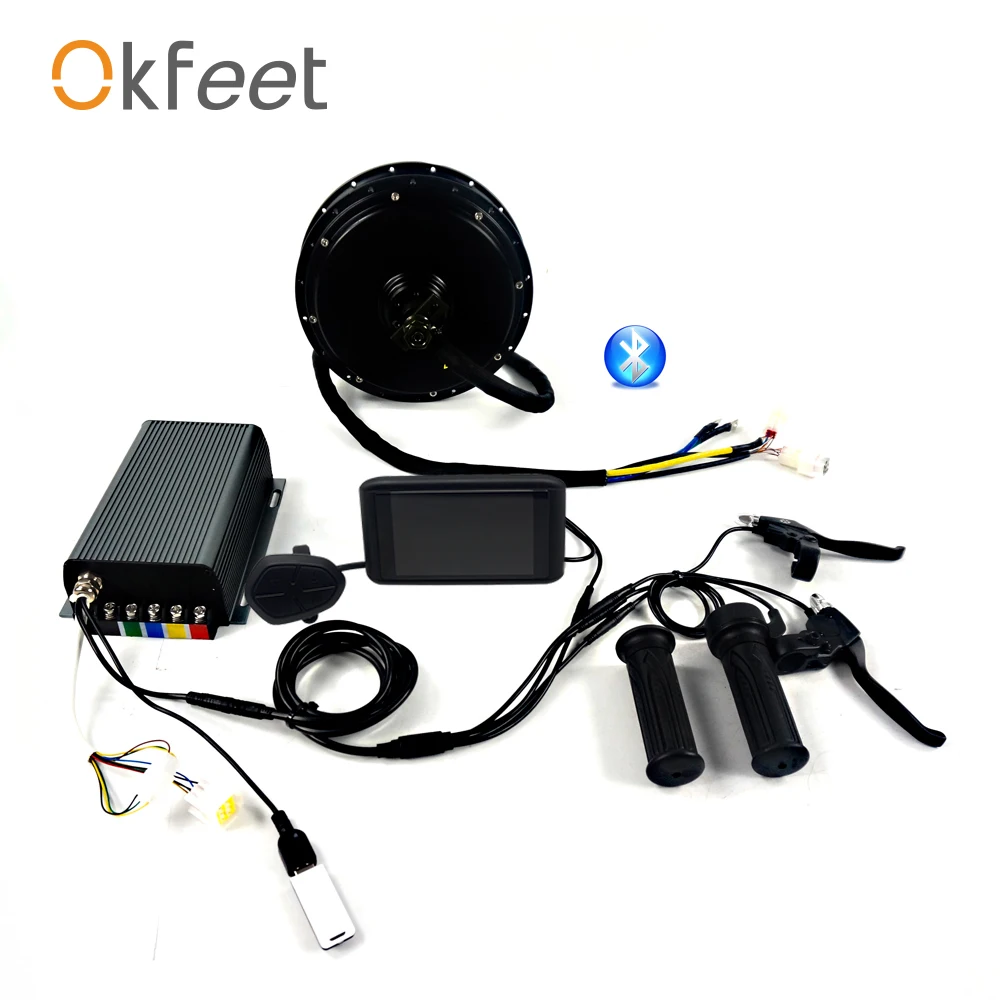

72V 3000W 5000W QS V3 50H Hub Motor Bluetooth Programming APP 750C Display Electric Bike Bicycle Ebike Conversion Kit

Brand Name okfeet

Voltage 48V

Design Brushless

Wattage > 400w

Motor Type Brushless Non-gear Hub Motor

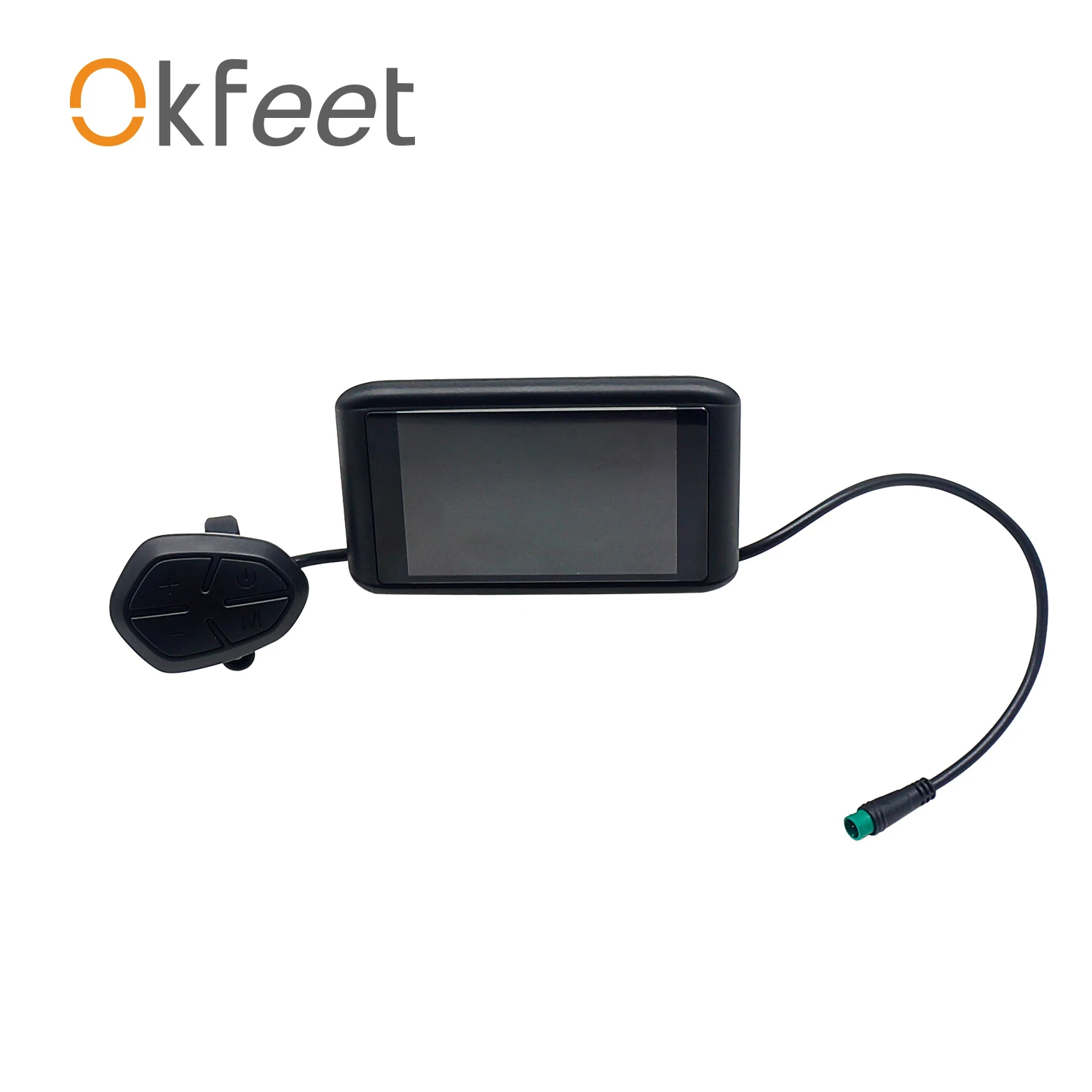

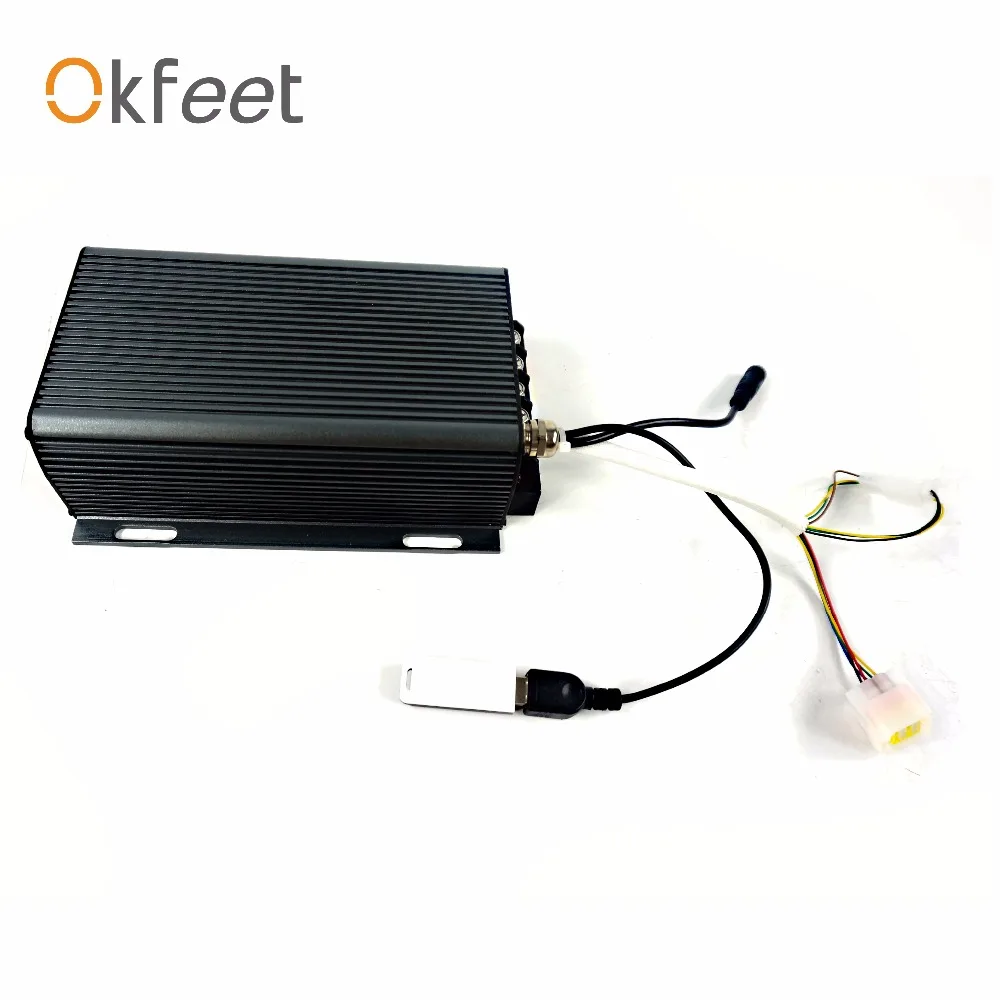

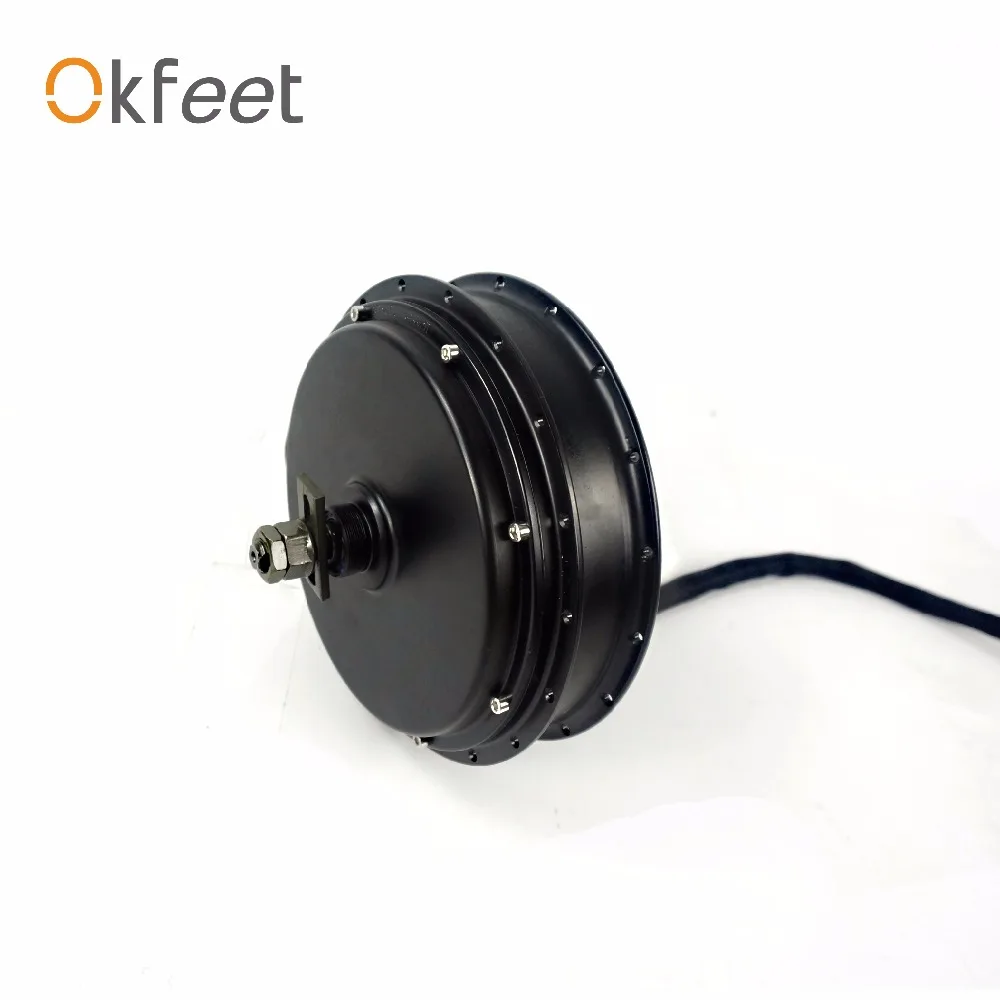

Motor Type: BLDC Hub Motor with Permanent Magnet Motor design: Double axle out Spoke hole: 3.4mm x 36pcs Matching Rim:16inch-26inch Magnet Height: 50MM Pole Pairs: 16 pairs Rated Power: 3000W Max. Power: 6000W Rated Voltage: 72V( 36-72V Can be optional) Speed: 80-100km/h Max No-load RPM: 900RPM Max Torque: 150N.M Max Efficiency: 88% Continious current:45A Max current:80A (Peak 100A in short time) Brake type: Disc brake Rear Fork width for installation: 150mm Winding Core material: Aluminium Cross Section of Phase wire: 10 mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 Color: Black W./ G..W. : 14kgs / 15kgs Size: 34*34*33CM Controller system The TFT display with controller is the 2.0 system. We upgrade it depending on the sinewave controller with the waterproof ,TFT display, Bluetooth Adapter, it is more functional and gives clients moreexperience. Controller Spec. Details. Model No. Voltage Max Battery Voltage DC max current Phase max current 72V80A 36V-72V 90V 80A 200A 18 Mosfets for both types. Size : 210*147*62mm Waterproof system for TFT display, throttle, brake levers. FUNCTIONS: 1.36v-72v TFT display Setting : 5 level speed control for throttle; wheel size choose; password setting; distance; time. 2.Programmable through PC and Bluetooth Adapter by IPhone or Android mobile phone : Voltage; DC Current ; e- Brake open & close; e-Brake Current ; Flux weakening open & close; Flux weakening Current ; Regenerative open & close; Regenerative Current; Temperature protection setting for motor & controller ; Error types and so on. Program by Bluetooth APP onMobile​
